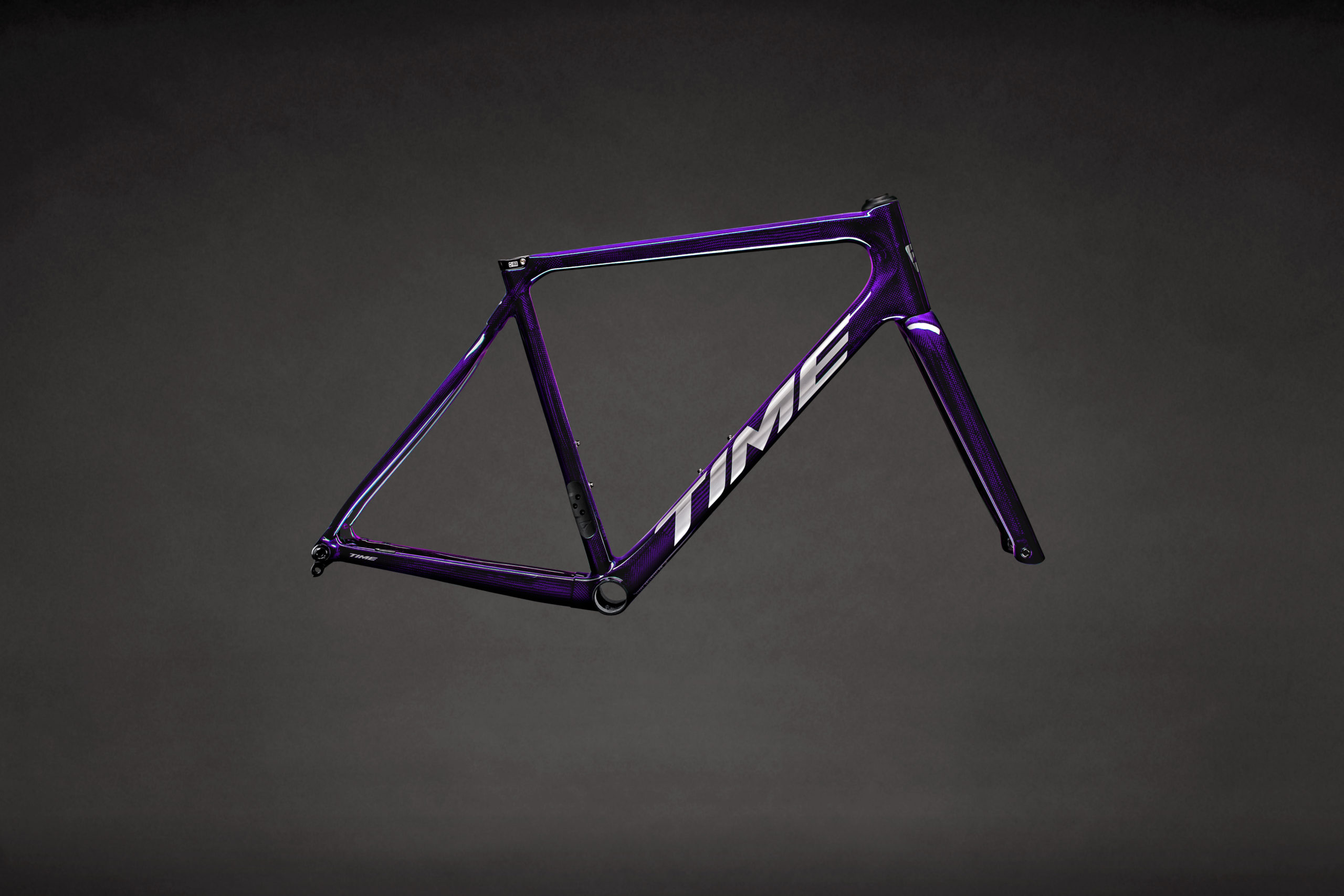

Time NXR Frameset

Built on proven TIME Braided Carbon Structure (BCS) carbon with a new Scylon-inspired fork, NXR delivers the signature ride quality we’ve refined for decades in a package that makes the decision easy. A geometry that responds instantly to your input – 32mm tire clearance for the roads you actually ride – Jewel-tone transparent finishes that let the carbon weave speak for itself. Pure Road is everything you want from NXR – nothing you don’t.

Frame Size *
XS
S
M
L
XL
Add A Discounted Groupset?
Crank Length (Shimano 105) *
Chainring Size (Shimano 105) *
Cassette Size (Shimano 105) *
Disc Rotors (Shimano 105) *
Crank Length (Shimano Ultegra) *
Chainring Size (Shimano Ultegra) *
Cassette Size (Shimano Ultegra) *
Disc Rotors (Shimano Ultegra) *
Crank Length (Shimano Dura-Ace) *
Chainring Size (Shimano Dura-Ace) *
Cassette Size (Shimano Dura-Ace) *
Disc Rotors (Shimano Dura-Ace) *
Add A Shimano Ultegra Dual-Sided Power Meter? (£100 OFF) *
Add A Shimano Dura-Ace Dual-Sided Power Meter? (£100 OFF) *
Add A Wheelset *
Decal Colour *
Black
White
Freehub *
Spare Spokes *
Bearings *
Total price:£2,639.00

More Info

Description

EVERYTHING YOU WANT, NOTHING YOU DON’T

PURE ROAD DESIGN – NXR positions the rider in a balanced, classic road posture — neither the extreme reach of an all-out race bike, nor the taller stack of an endurance frame. It is the road position most riders actually want: powerful, comfortable for hours, and ready to attack the moment the road turns skyward

BORN FROM ALPE D’HUEZ – For years the Alpe d’Huez has been TIME’s performance road benchmark — the bike our engineering team has refined, tested, and trusted across thousands of riders, races, and mountain passes. NXR inherits that engineering directly, sharing the production process, the materials, and the European manufacturing. The result is a bike that punches decisively above its category

PURE ROAD FEATURES – NXR is built around road tires up to 32mm, the sweet spot where the professional peloton has converged. Wide enough for real-world tarmac, fast and comfortable everywhere, narrow enough to preserve the responsive feel that makes a road bike feel like it should. NXR is a best-in-class bike, because it’s a TIME! NXR integrates a SRAM UDH (Universal Derailleur Hanger) as standard. Combined with fully internal routing and full electronic-groupset compatibility, NXR is built for whatever you ride today and whatever comes tomorrow.

FUNCTIONAL PROFILES – Every line of NXR was drawn to do two things at once. The down tube, the top tube junction, the seat cluster, the Scylon-inspired fork blades, each profile is shaped to serve a structural purpose and to do so beautifully. It’s Performance and Style in harmony!

NEW AERO FORK SHAPING Inspired by SCYLON, the NXR fork is slimmed to reduce frontal area, and readily accepts a 32mm tyre.

BCS + DYNEEMA® – With the new NXR, innovation comes as standard. NXR is built using the same Braided Carbon Structure (BCS) process that defines every TIME frameset. Carbon fiber is woven, not laid in pre-impregnated sheets, and Dyneema® is integrated naturally into that braid where it matters most. WHY BCS MAKES THE DIFFERENCE Most carbon brands build with pre-preg sheets, a process that makes integrating Dyneema® either difficult or impossible. TIME’s braided process accepts it natively.

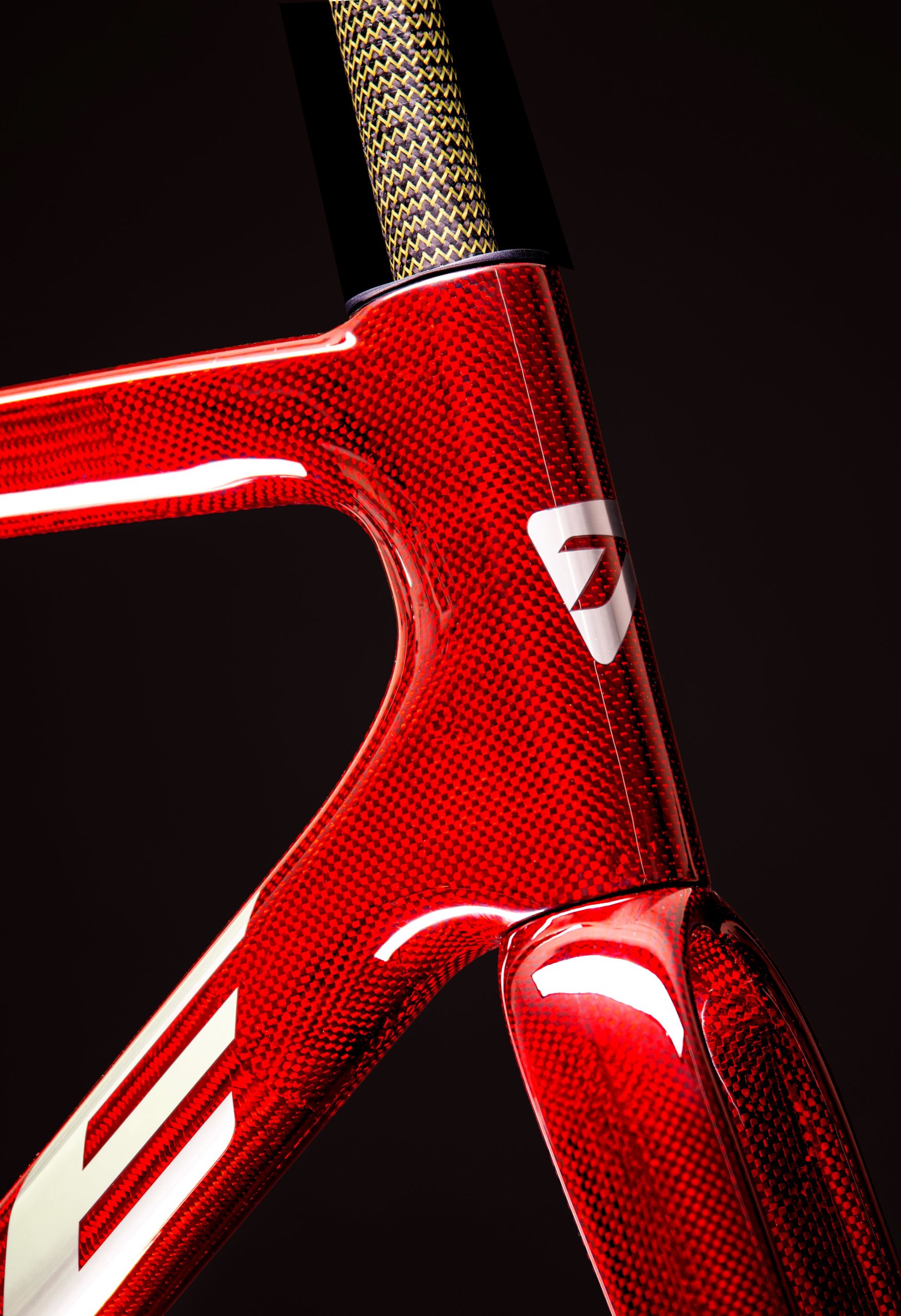

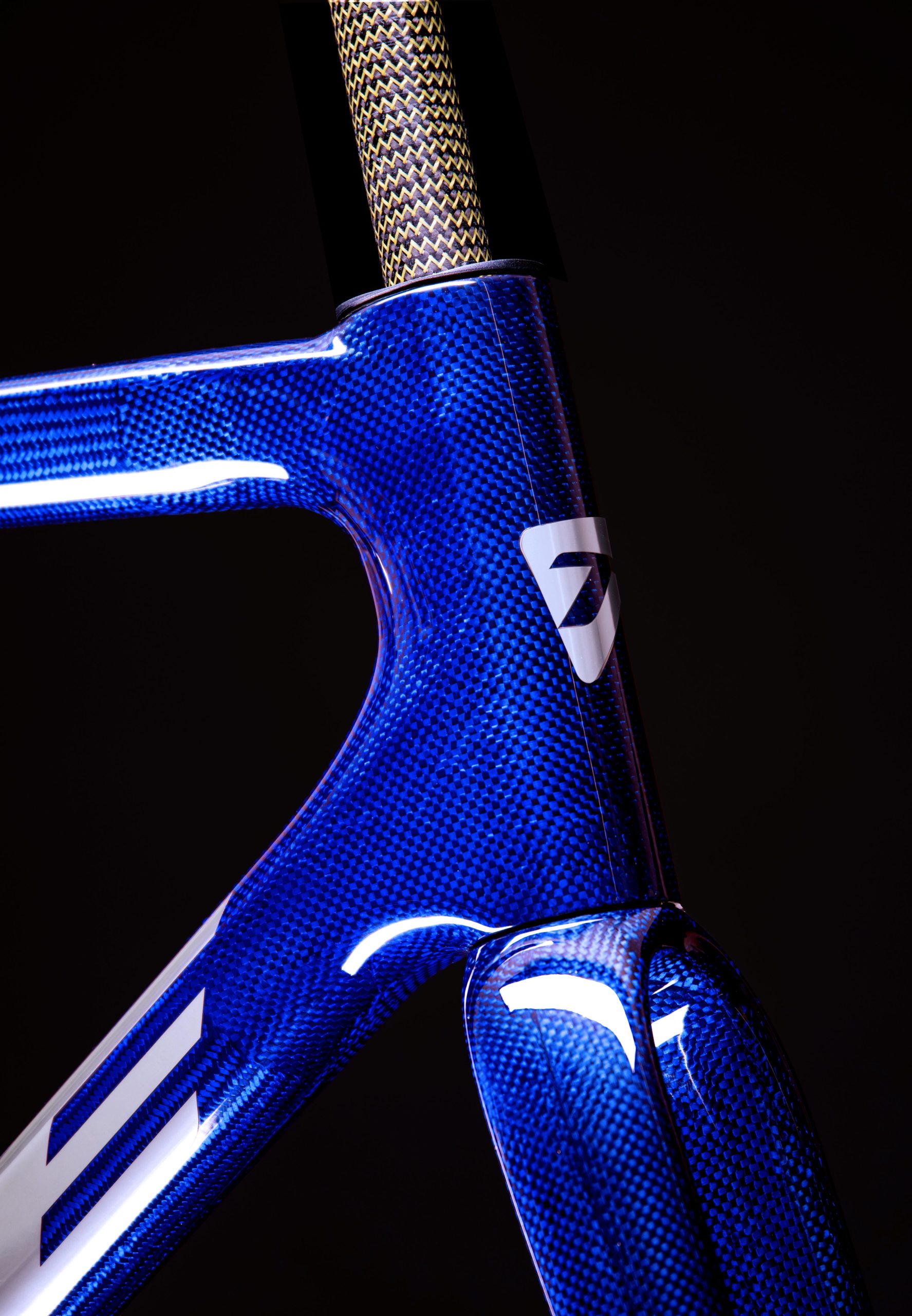

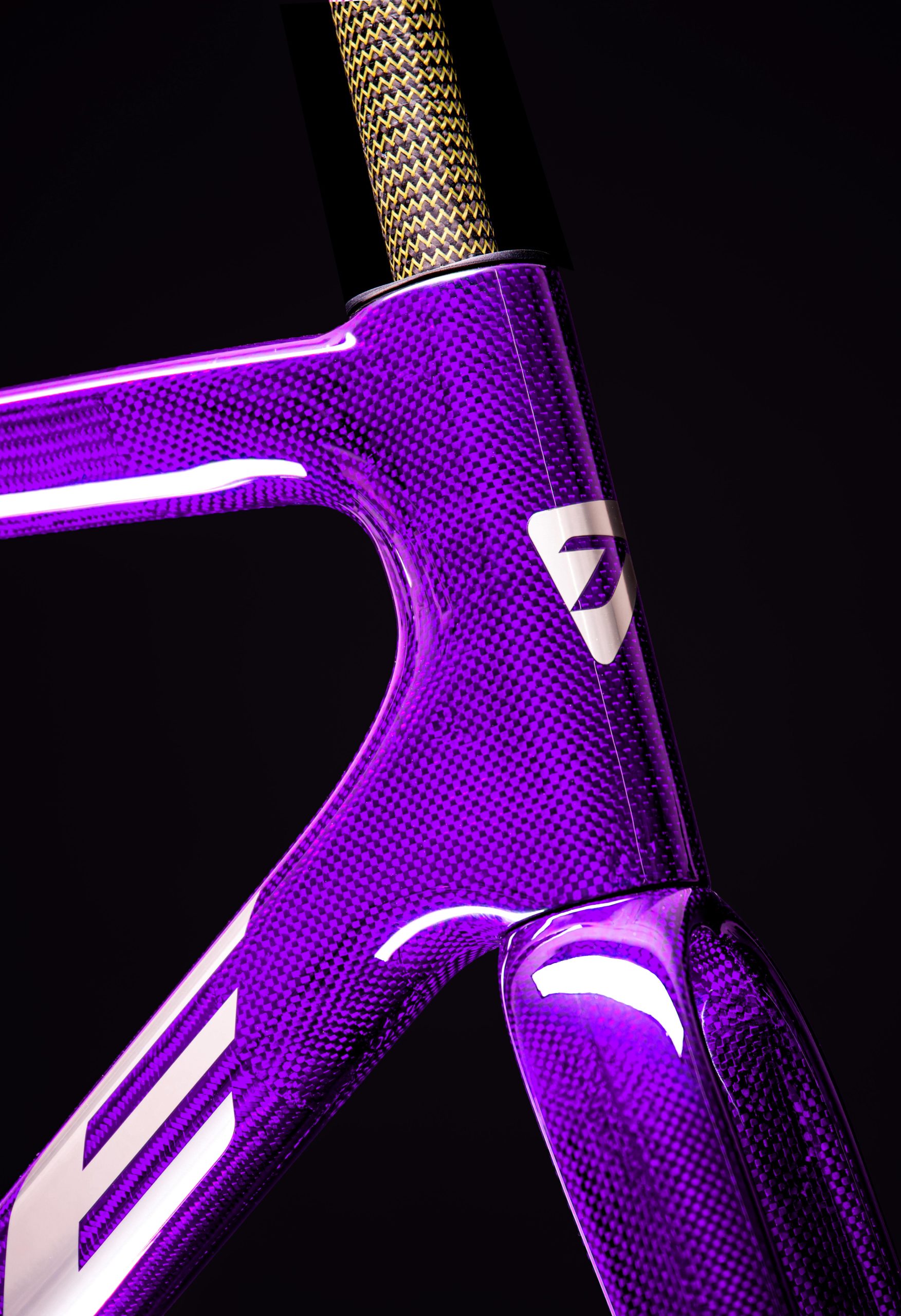

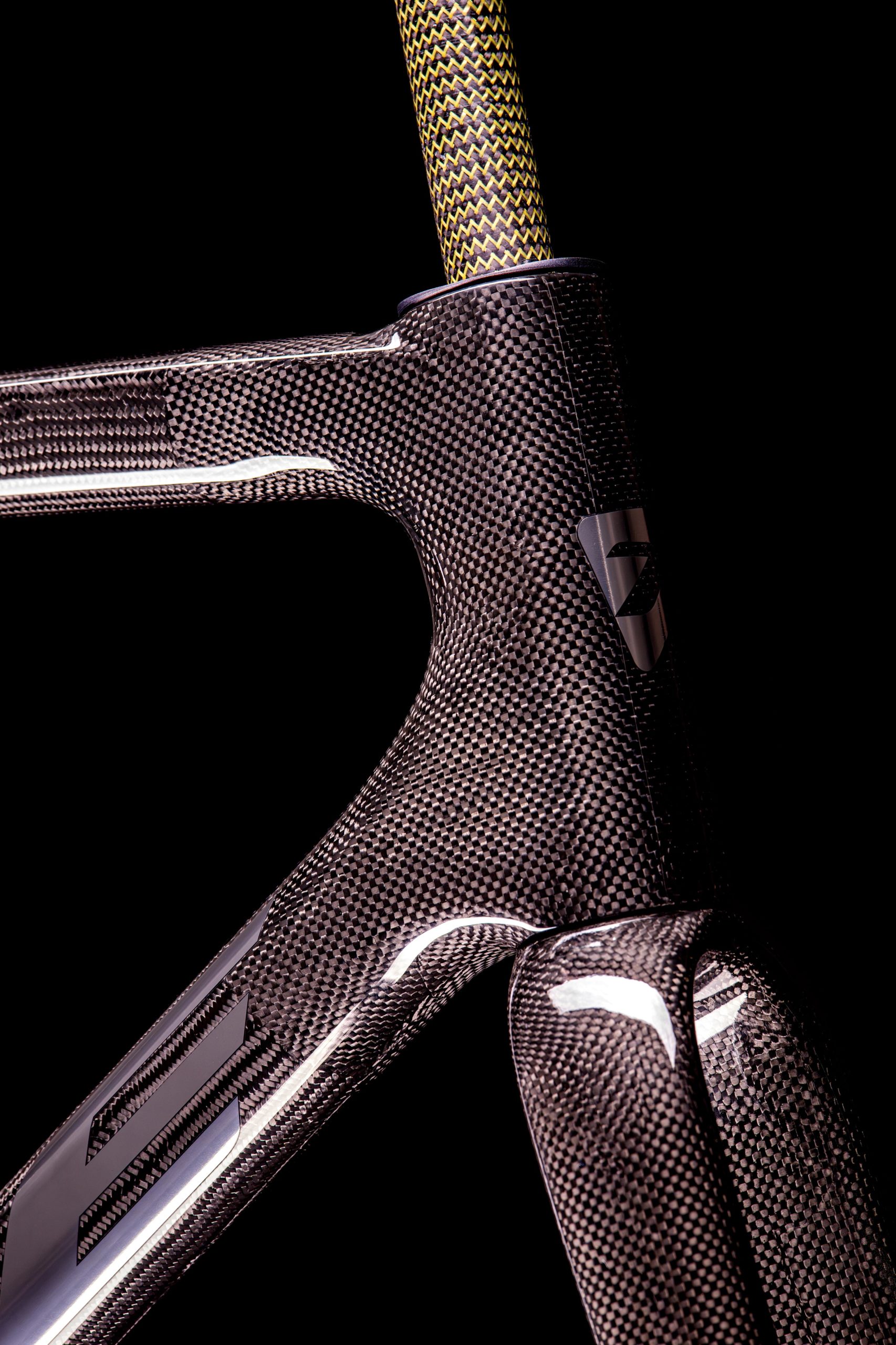

EUROPEAN CRAFTSMANSHIP – Most road bikes hide their construction beneath layers of opaque paint. NXR does the opposite. Every finish is transparent over the bare BCS braided carbon so that the layup, the fiber direction, the hand-laid transitions are all visible right through the colour. You don’t just own NXR, you see and feel, every time you ride, exactly what makes it a TIME.

  • Same DNA as the Alpe d’Huez — TIME’s performance standard
  • Balanced road geometry · confident handling · not over-stretched
  • Dyneema® BCS layup is woven, not pre-preg
  • Transparent gloss finishes reveal the BCS braided layup underneath
  • 32mm tyre clearance

BUILD OPTIONS

Compatible with: Shimano Di2 · SRAM AXS · Campagnolo EPS · 1× and 2×

SIZES

XS, SM, MD, LG, XL

WHAT’S INCLUDED

• FSA Internal Headset with SMR Top Cap

• TIME Headset Top Cap for ACR System

• Front and Rear Thru Axles

• Alloy Bottle Bolts

• Semi-Integrated Seatpost Clamp

• Front and Rear Derailleur Hangers

NXR FEATURES

  • Reinforced Steerer Tube
  • Forged Carbon
  • UDH
  • Integrated Cable Option
  • Single Cover

Additional information

Colour

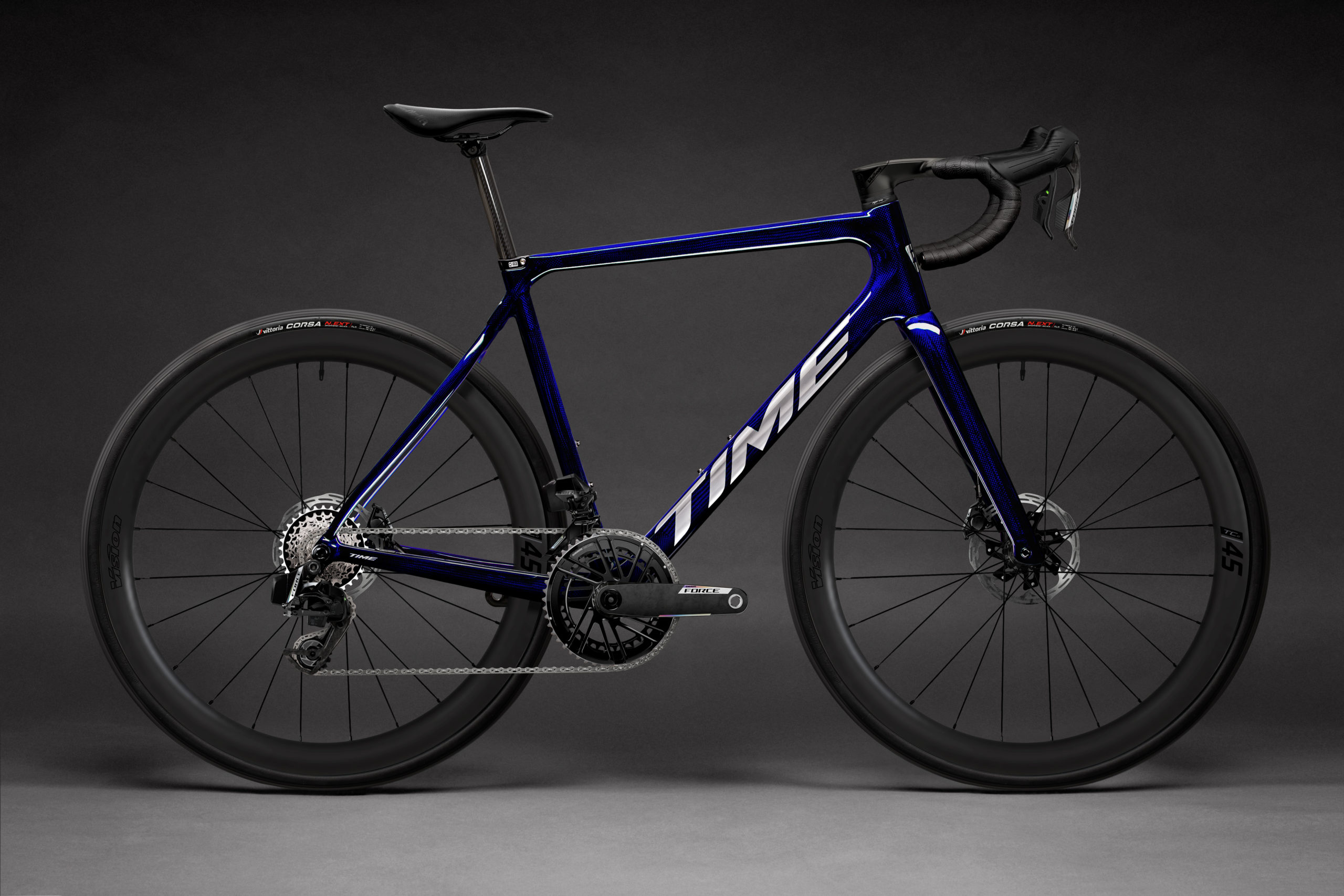

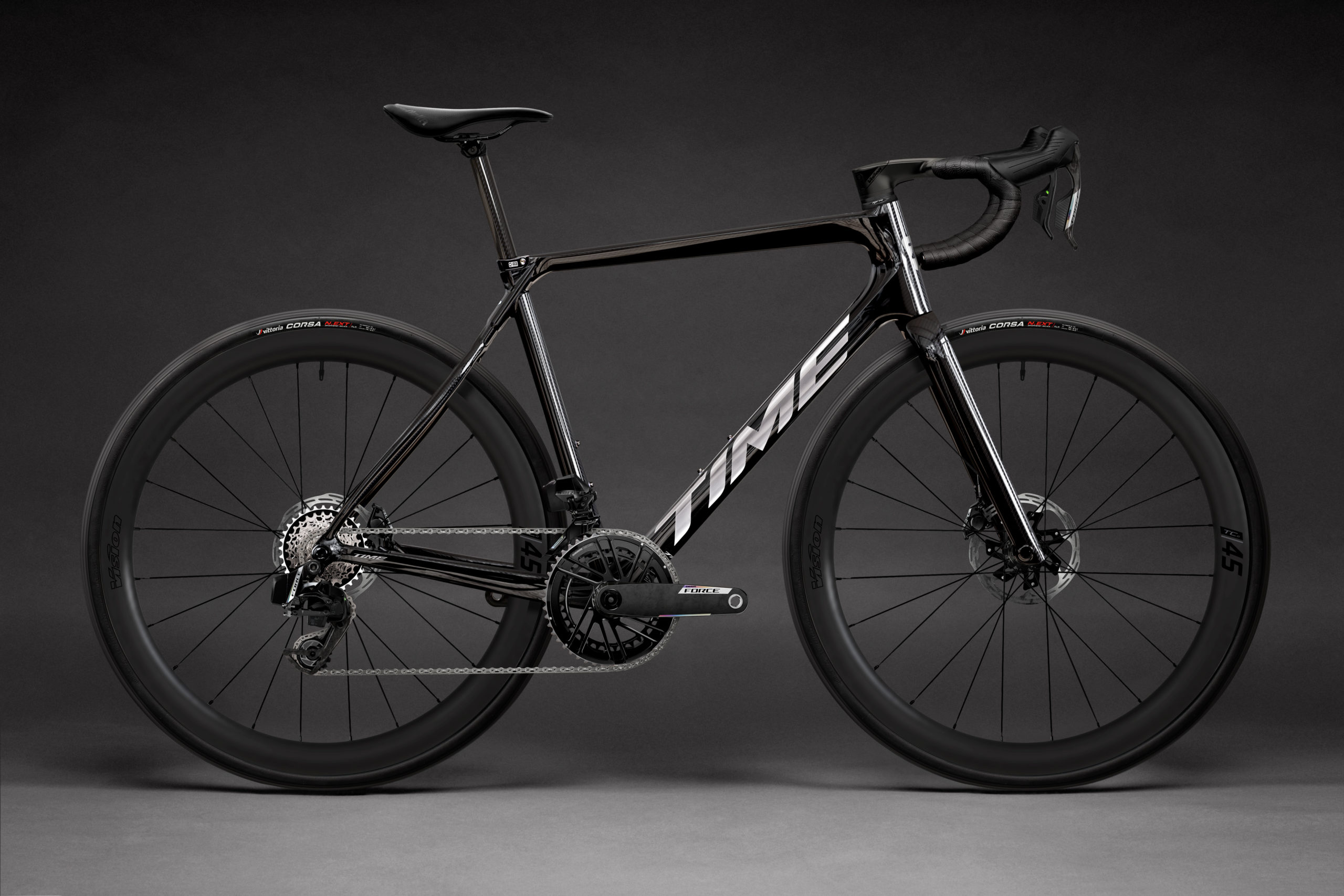

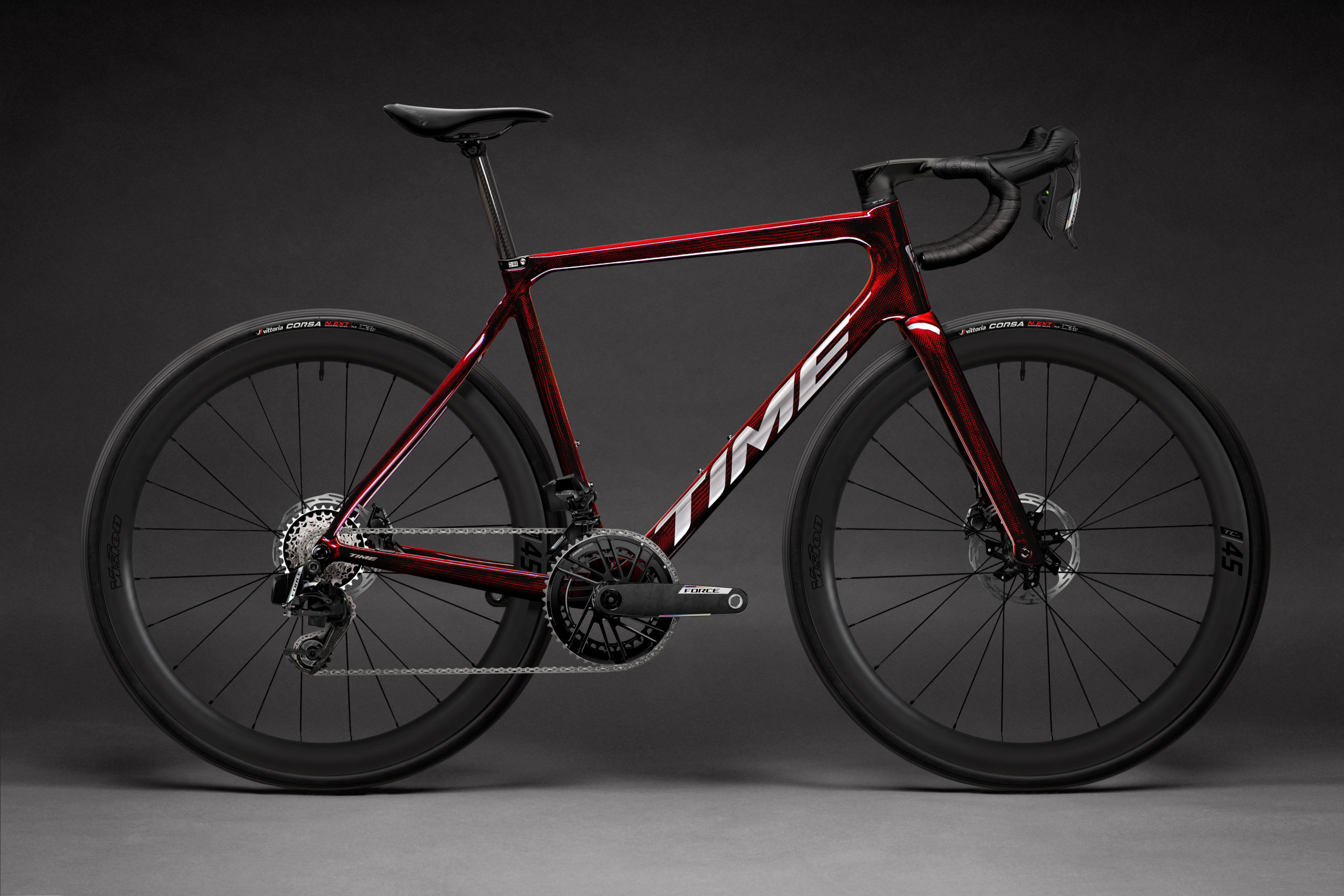

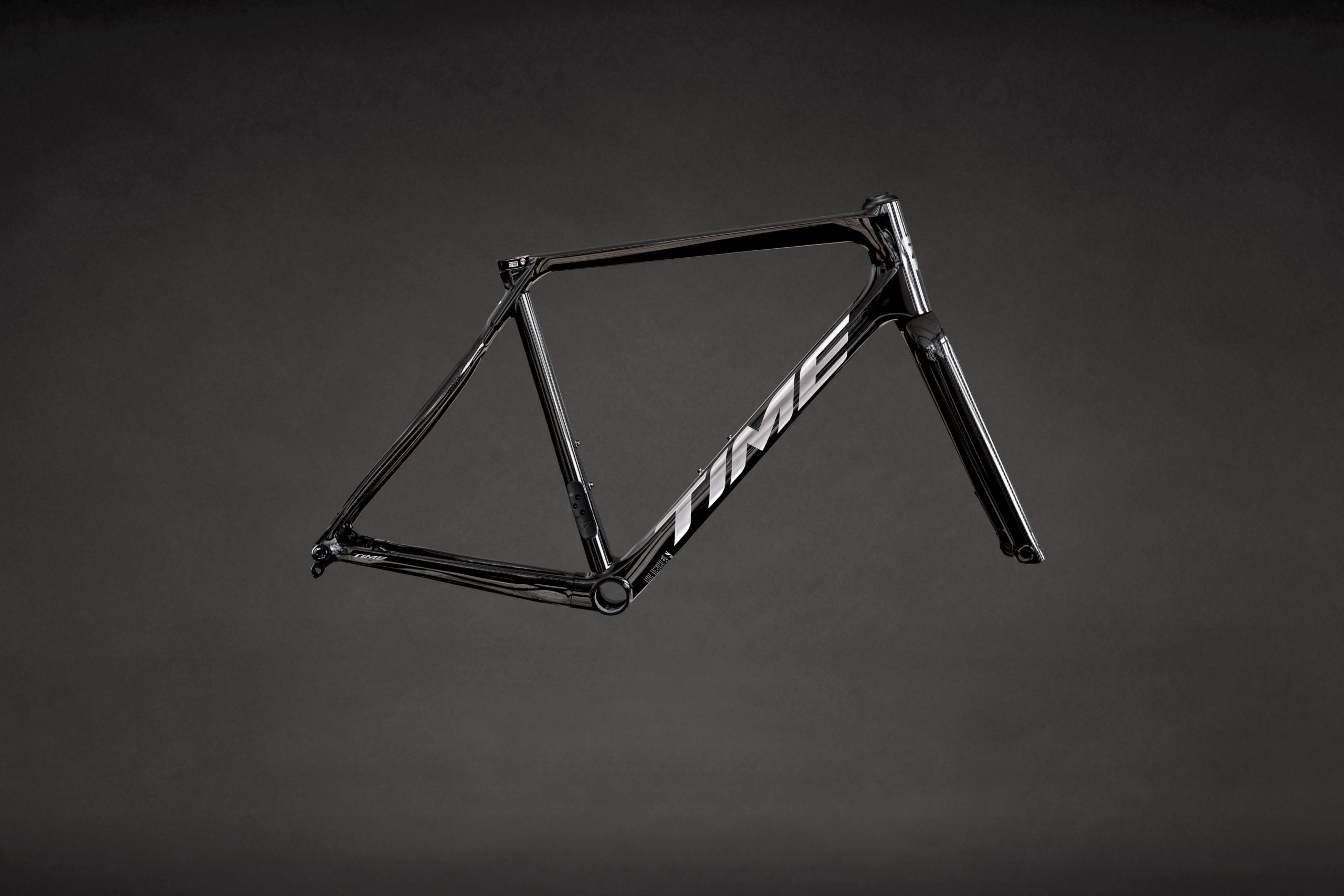

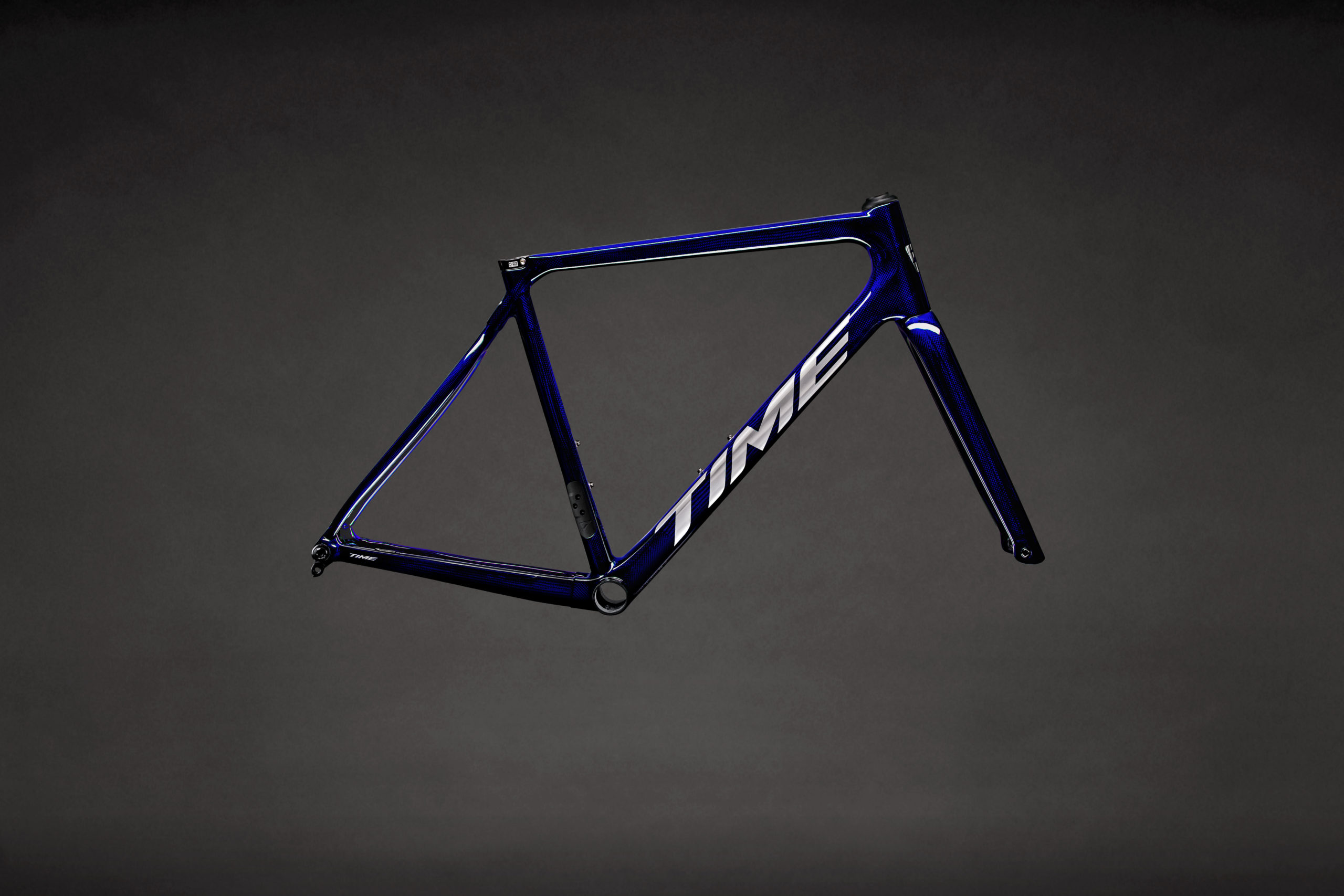

Carbon Gloss, Transparent Blue, Transparent Red, Transparent Purple

Frame Material

Dyneema® Enhanced BCS Carbon Fiber

Sizes

XS, SM, MD, LG, XL

Fork Steerer Tube

Kevlar Enhanced BCS Carbon Fiber – Tapered 1–1/8” to 1–1/2”

Headset Bearings

51.8×42mm, 45×45º

Bottom Bracket

PF 386 EVO

Disc Hub Standard

12x100mm F, 12x142mm R

Thru Axles

12x120x1.5mm pitch F, 12x161x1.0mm pitch R

Max Tyre Width

700 x 32mm

Seatpost Diameter

ø27.2mm

Seatpost Clamp

Integrated hidden clamp

Shifting

Compatible with all electronic shifting systems

Front Derailleur Mount

Standard

Rear Derailleur Mount

SRAM UDH Hanger

Front Brake

Front and Rear Flat Mount Disc

Rotor Size

140 or 160mm with Adapter

×
