Pearson On&On Race Frameset

ON&ON RACE Carbon Gravel Race Frameset. Pure Speed, Wherever You Race.

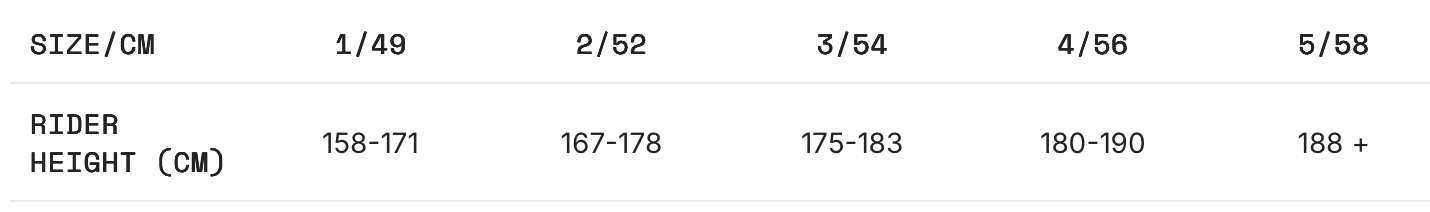

Frame Size *
1
2
3
4
5
Total price:£2,900.00

More Info

Description

The On & On Race frameset is Pearson’s pure performance gravel and all-road chassis, built for riders who demand speed, responsiveness, and racing-level performance — whether you’re pushing hard on fast gravel sectors or chasing tarmac PBs.

Crafted as a lightweight, high-stiffness platform with modern gravel racing geometry, the On & On Race gives you the precision, power transfer, and agility you need to ride fast, race hard, or build a do-it-all road-gravel bike. It’s the ideal foundation for a bike that feels sharp, efficient and race-ready — no compromises.

FRAMESET

  • T1000 MJ04B carbon chassis
  • Outstanding stiffness to weight balance
  • Aero-optimised tubes and seat post
  • UDH standard dropout

STANDARD RIDER FEATURES

  • Bottle mounts for a single aero or two standard bottles
  • 45mm tyre clearance for high-speed competition
  • Flattened top tube for easy shouldering
  • Race-day weight: Complete build 7.88kg

ENGINEERING LED DESIGN

  • Race-focused design
  • Aero optimised
  • Rigorously lab tested – ISO 4210
  • UCI-approved, as ridden by team Spectra Racing

Additional information

Frame

On and On, carbon

Frame Weight

1000g

Fork

On and On, carbon

Fork Weight

440g

Colour

Dawn Blue, Racing White

Headset

1 1/2" Integrated headset, Ceramic Speed SLT bearings

Seatpost

Carbon, Aero profile, including Di2 battery holder

Saddle Clamp

For 7x7mm rails

Seat Clamp

Integrated saddle clamp wedge with rubber cover

Rear Derailleur Hanger

Direct mount alloy hanger

Front Derailleur Hanger

Braze on alloy hanger

Front Wheel Axle

M12 x 1, 122mm length

Rear Wheel Axle

M12 x 1, 166mm length

Bottom Bracket

Not Included, requires T47

Bolts

M5 bolts on all cage and rack mounts, and plugs for cable routing

Extras

Seat clamp rubber cover

×
